16B High Structure Heavy Duty Connector Housings

16B High Structure Heavy Duty Connector Housings

Welcome to buy the hottest, lowest price, newest high quality 16B High Structure Heavy Duty Connector Housings from our factory. We have many different shapes and styles of installation depending on the application or where they are used. Access to the cabinet is via cable entry on one side of the c......

Send Inquiry

Product Description

Welcome to buy the hottest, lowest price, newest high quality 16B High Structure Heavy Duty Connector Housings from our factory. We have many different shapes and styles of installation depending on the application or where they are used. Access to the cabinet is via cable entry on one side of the cabinet or, for surface mounting, via cable entries on both sides of the cabinet or through the back of the wall cabinet.

Product Description

16B High Structure Heavy Duty Connector Housings with TUV audit.We also have CE,UL,EAC certified high performance connectors. ISO quality management system. Patent configuration, easy installation, quick installation. Personalized interfaces for different scenarios. High quality raw material guarantee. Create more environmentally friendly products.

Basic Info.

 Model NO.HZW-H16B-SGH-4G-PG29
Contacts Surface TreatmentSilver/Glod Plated
Housing MaterialDie-Casting Aluminum Alloy
Working EnvironmentsIP65 for Various Harsh Environments
Contact CostPay Additional Cost for Crimp Contacts
SpecificationCE, UL, ROHS
OriginChina
Production Capacity3000pieces Per Day
CertificationUL
Contact MaterialCopper
Housing CoatingAnti-Corrosion Powder Spray
Crimp ToolingAvailable
Transport PackagePoly bag and Double Cartons
TrademarkOukerui
HS Code8536900000

SPECIFICATION

SurfaceEpoxy powder Coating
MaterialDie-casting zinc
Colour Grey
Locking element Lever type
-Lever typeSingle lever
-MaterialStainless steel
Hoods/Housing sealNBR
Limiting temperatures-40~+125ºC
Flammability acc.to UL94V0
Degree of protection acc.to DIN EN 60 529 for coupled connectorIP65

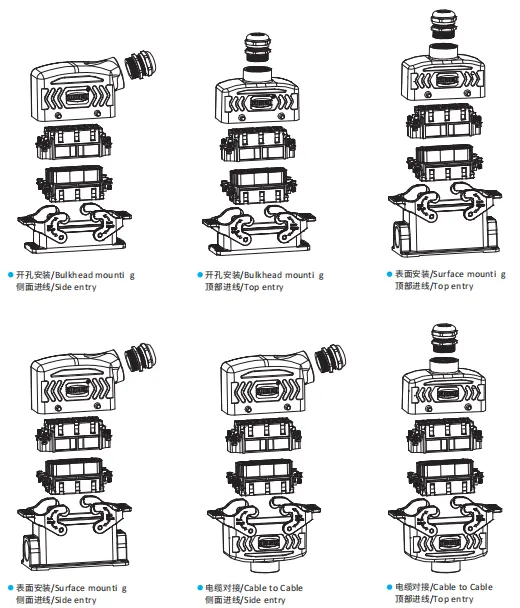

Mounting typeBulkhead/Surface/Cable to Cable
Couple insertsHD-040,HDD-072,HE-016,HEE-032,HSB-006,HVE-006,
HK-4/0,HK-4/2

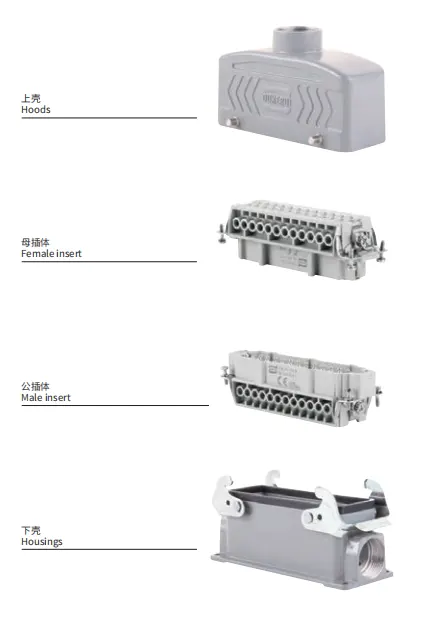

The option of HZW-16B Hoods

Structure types of HoodsLow & high alternative
Type of entrySide & top entry alternative
Locking lever typeSingle locking lever
Bolts for hookingStainless steel
Thread Size of cable glandPG21,M32,PG29,2PG21,2M32,2PG29

The option of HZW-16B housings

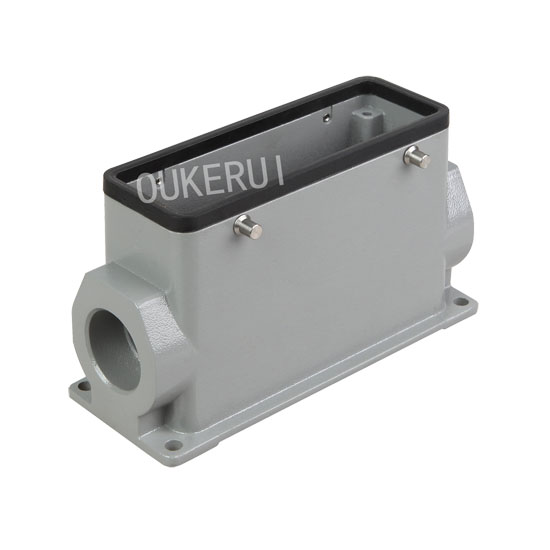

Structure of HousingLow & high alternative
Mounting TypeBulkhead & Surface Installation
Type of exitBottom & Side Exit alternative
Locking lever typeSingle Lever /Double Locking Levers
Locking Lever's MaterialStainless steel & steel covering engineering plastic
Thread Size of cable glandPG21,M32,PG29,2PG21,2M32,2PG29
Cable exit type of high structureone/two exit

16B High Structure Heavy Duty Connector Housings are extensively used in equipment that require electrical and signal connections,such as mold ,machinery,construction machinery,textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical and petrochemical equipment.
