Understanding Mechanical Power Press: Function, Types, and Applications

Mechanical power presses are essential machines in the manufacturing industry, widely used for cutting, punching, bending, and shaping metal sheets. These machines provide high precision, efficiency, and speed, making them ideal for mass production. In this blog, we will explore the working principles of mechanical power presses, their different types, and their applications across various industries.

What is a Mechanical Power Press?

A mechanical power press is a machine that applies pressure to a workpiece using a mechanical system driven by a flywheel. The press transfers mechanical energy to shape or cut materials through a die, ensuring consistent and precise results. These machines are commonly used in metal fabrication, automotive, aerospace, and appliance manufacturing.

How Does a Mechanical Power Press Work?

The operation of a mechanical power press follows a straightforward yet powerful mechanism:

1. Flywheel Activation – The machine is powered by an electric motor, which drives a flywheel. The flywheel stores and releases mechanical energy when needed.

2. Clutch and Brake System – The clutch engages to transfer energy from the flywheel to the crankshaft, moving the ram downward to apply force. The brake system stops the movement when the operation is complete.

3. Ram and Die Action – The ram presses the material against a die, shaping, cutting, or forming it according to the design.

4. Return Stroke – After applying pressure, the ram moves back to its original position, ready for the next cycle.

Types of Mechanical Power Presses

Mechanical power presses come in different configurations, each designed for specific applications.

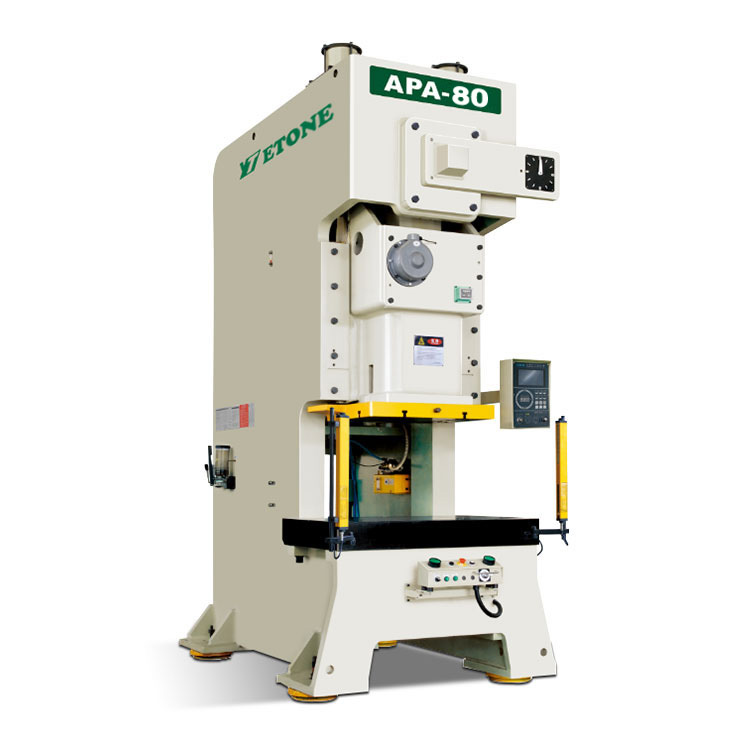

1. C-Frame Power Press

  - Features an open-front design, allowing easy access to the work area.

  - Suitable for small to medium-sized metalworking tasks.

  - Commonly used in stamping, bending, and punching operations.

2. H-Frame Power Press

  - Also known as a straight-side press, it has a rigid frame structure that provides greater stability.

  - Ideal for heavy-duty applications that require high precision and force.

3. Single Crank Power Press

  - Uses a single crankshaft to drive the ram.

  - Best suited for moderate-force applications such as blanking and punching.

4. Double Crank Power Press

  - Equipped with two crankshafts to distribute force evenly.

  - Preferred for large workpieces that require uniform pressure.

5. High-Speed Power Press

  - Designed for rapid production cycles, improving efficiency.

  - Commonly used in industries where precision and high output are critical.

Applications of Mechanical Power Presses

Mechanical power presses are used in various industries for different manufacturing processes, including:

- Automotive Industry – Used for stamping car body parts, frames, and engine components.

- Aerospace Industry – Helps in forming lightweight yet durable metal components.

- Electronics Industry – Used for producing small metal parts such as connectors and casings.

- Appliance Manufacturing – Helps in making metal enclosures, panels, and other household appliance parts.

- Construction Industry – Used for fabricating structural components and hardware fittings.

Advantages of Using a Mechanical Power Press

1. High Efficiency – The fast operating cycle increases production output.

2. Precision and Consistency – Ensures uniform shaping and cutting of materials.

3. Cost-Effective – Suitable for large-scale manufacturing, reducing production costs.

4. Versatility – Can handle different materials such as steel, aluminum, and brass.

5. Durability – Built for long-term use with minimal maintenance requirements.

Conclusion

Mechanical power presses are indispensable tools in modern manufacturing, providing speed, accuracy, and reliability for metalworking applications. With various types available, industries can choose the most suitable press based on their production needs. As technology advances, mechanical power presses continue to evolve, offering improved efficiency and safety features to meet the growing demands of industrial manufacturing.
