How Service Insulation Piercing Connectors Typically Work

2024-04-03

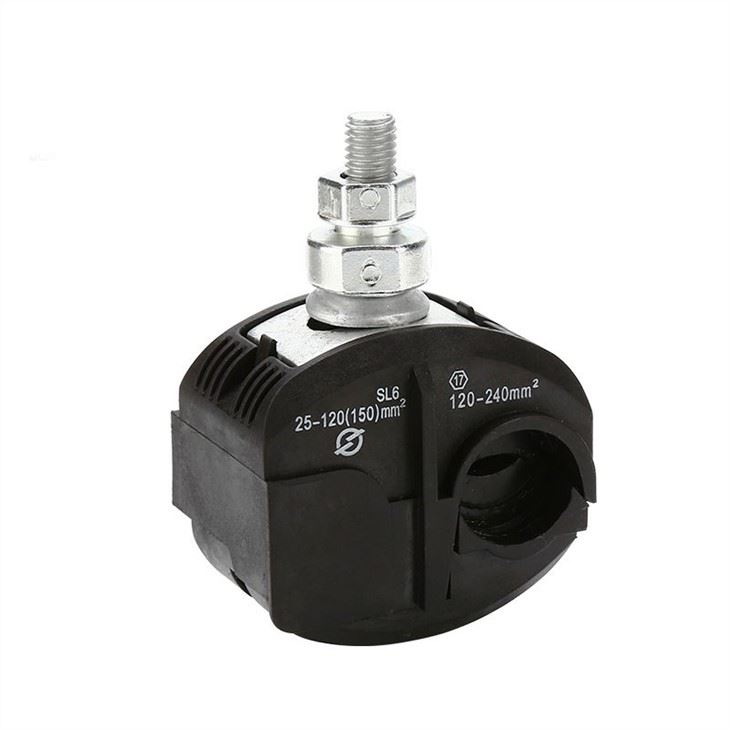

Service Insulation Piercing Connectors (IPC) are specialized electrical connectors used in electrical installations, primarily for joining or tapping into insulated conductors without stripping the insulation. They are commonly used in applications such as overhead distribution lines, street lighting, and other electrical connections where ease of installation and reliability are essential.

Here's how they typically work:

1. Design: IPCs are designed to pierce through the insulation of the conductor to make contact with the metal inside. They consist of a body made of a durable, corrosion-resistant material like aluminum or copper, with sharp piercing elements.

2. Installation: To install an IPC, the installer positions it over the insulated conductor and applies pressure. The piercing elements penetrate through the insulation, making contact with the conductor inside. This is usually done using a specialized tool designed for this purpose.

3. Connection: Once the piercing elements make contact with the conductor, a secure electrical connection is established. This connection allows for the flow of electricity without exposing the conductor to the environment.

4. Insulation: After the connection is made, the IPC typically includes a sealant or insulating material to protect the connection from moisture, corrosion, and other environmental factors. This ensures the long-term reliability of the connection.

Benefits of Service Insulation Piercing Connectors include:

- Ease of Installation: IPCs eliminate the need for stripping insulation from the conductor, saving time and effort during installation.

- Reliability: When properly installed, IPCs provide a secure and robust electrical connection.

- Versatility: They can be used in various applications, including overhead lines, underground connections, and street lighting.

- Weather Resistance: IPCs are designed to withstand harsh environmental conditions, ensuring reliable performance over time.

However, it's essential to follow manufacturer guidelines and industry standards when selecting and installing IPCs to ensure safety and reliability in electrical installations. Additionally, proper training and certification may be required for installers working with IPCs to ensure correct installation procedures are followed.
