Exploring LCD Dot Matrix Modules: Versatility and Applications

In the world of electronics and display technology, LCD dot matrix modules stand out for their versatility and practicality. These modules offer a dynamic way to present information, from simple text to intricate graphics, making them essential components in many devices and systems. In this blog, we’ll dive into what LCD dot matrix modules are, how they work, their advantages, and their diverse applications.

What Are LCD Dot Matrix Modules?

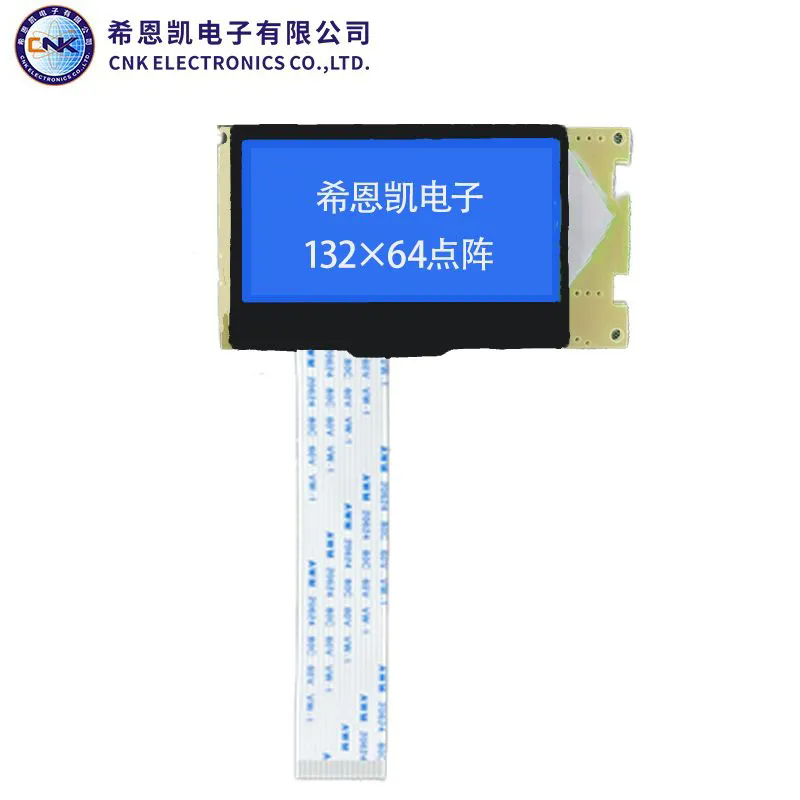

LCD dot matrix modules are display units that use a grid of dots or pixels to form characters, symbols, or images. The term "dot matrix" refers to the arrangement of these dots in a matrix format, typically in a rectangular grid. Each dot in the matrix can be turned on or off to create various patterns and display information.

These modules are made up of a liquid crystal display (LCD) panel that contains a matrix of tiny segments, each of which can be activated to display a specific part of the image or text. LCD dot matrix modules are often used in conjunction with a controller IC that manages the display and interprets the data sent to it.

How Do LCD Dot Matrix Modules Work?

The functionality of LCD dot matrix modules involves several key components and processes:

1. LCD Panel: The core of the module is the LCD panel, which contains the dot matrix grid. Each dot, or pixel, is composed of liquid crystals that change their orientation when an electric current is applied, allowing light to pass through and create visible patterns.

2. Backlight: Many LCD dot matrix modules are equipped with a backlight to enhance visibility, especially in low-light conditions. The backlight illuminates the LCD panel from behind, making the displayed information easier to see.

3. Controller IC: The controller integrated circuit (IC) manages the data sent to the LCD panel. It interprets the input data and converts it into signals that activate the appropriate dots in the matrix to display the desired information.

4. Data Input: The module receives data from an external source, such as a microcontroller or computer, which specifies what should be displayed. The data is processed by the controller IC and translated into visual output on the LCD panel.

5. Display Output: The activated dots on the LCD panel form the characters, symbols, or images that are visible to the user. The arrangement and combination of these dots create the final display.

Advantages of LCD Dot Matrix Modules

LCD dot matrix modules offer several benefits that make them a popular choice for various applications:

- Versatility: LCD dot matrix modules can display a wide range of information, from simple text to complex graphics. This versatility allows them to be used in diverse applications.

- Customizable Display: The dot matrix format enables flexible and customizable display configurations. Users can adjust the content and layout to suit specific needs.

- Low Power Consumption: LCD technology is known for its energy efficiency. LCD dot matrix modules consume relatively low power compared to other display types, making them suitable for battery-operated devices.

- High Contrast and Visibility: LCD panels provide good contrast and clarity, especially when equipped with a backlight. This ensures that the displayed information is easily readable.

- Durability: LCD dot matrix modules are robust and can withstand various environmental conditions, making them suitable for use in rugged or industrial settings.

Applications of LCD Dot Matrix Modules

The versatility of LCD dot matrix modules makes them suitable for a wide range of applications:

- Consumer Electronics: Used in devices like digital clocks, calculators, and handheld games to display time, numbers, and game information.

- Industrial Equipment: Employed in control panels, measurement instruments, and machinery displays to provide operational status, settings, and alerts.

- Medical Devices: Integrated into medical equipment such as patient monitors and diagnostic tools to show measurements, statuses, and other relevant data.

- Automotive Displays: Utilized in vehicle dashboards and infotainment systems to present information like speed, fuel levels, and navigation instructions.

- Retail and Public Information Displays: Used in point-of-sale systems, ticket machines, and public information boards to provide updates, instructions, and advertisements.

- Educational Tools: Implemented in educational devices and training equipment to display instructional content and interactive elements.

Tips for Using LCD Dot Matrix Modules

To get the most out of your LCD dot matrix module, consider these tips:

1. Proper Connection: Ensure that the module is correctly connected to its controller or microcontroller, with proper wiring and signal connections.

2. Programming: Familiarize yourself with the programming and control requirements of the module. Many modules have specific protocols and commands for managing display output.

3. Brightness and Contrast Adjustment: Adjust the backlight brightness and contrast settings to optimize visibility based on your specific application and environment.

4. Handling and Care: Handle the module with care to avoid damage to the delicate LCD panel. Protect it from extreme temperatures, moisture, and physical stress.

5. Software Integration: If integrating the module into a larger system, ensure that the software or firmware is compatible and correctly configured to interface with the display module.

Conclusion

LCD dot matrix modules are a versatile and efficient solution for displaying a wide range of information across various applications. Their ability to present text, graphics, and symbols with high clarity and customizable options makes them an invaluable component in many electronic devices and systems. As technology advances, LCD dot matrix modules will continue to play a crucial role in enhancing communication and interaction in both consumer and industrial applications.
